Dimple Grinder II

Fast and reliable mechanical method of pre-thinning to near electron transparency to greatly reduce your ion milling times and uneven thinning.

Advantages Research Spotlight Media Library Publications Resources Back to top
Advantages:
  • Large transparent areas: Utilizes both the large wheel and flat wheel to preserve a large transparent area after processing
  • Stronger specimens: Leaves a thick supporting rim to protect and strengthen the specimen after dimpling
  • Direct preparation of TEM specimens: Produces a final thickness of <3 μm in dimpled specimens
  • Accurate depth and thickness control: User-defined stop point and real-time display ensure you can produce the appropriate dimple depth and thickness
  • Micro-positioning: Provides both orthogonal and intersect axes for more accurate positioning

Publications

Nature Communications
2022

Wu, S.; Kou, Z.; Lai, Q.; Lan, S.; Katnagallu, S. S.; Hahn, H.; Taheriniya, S.; Wilde, G.; Gleiter, H.; Feng, T.

Journal of Non-Crystalline Solids
2016

Holmström, E.; Haberl, B.; Pakarinen, O. H.; Nordlund, K. Djurabekov, F.; Arenal, R.; Williams, J. S.; Bradby, J. E.; Petersen, T. C.; Liu, A. C. Y.

Journal of Structural Biology
2014

Schwarcz, H. P.; McNally, E. A.; Botton, G. A.

Resources:



Model 657

Datasheet

Dimple Grinder II

Applications

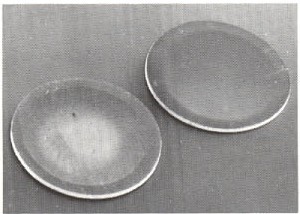

Dimpling ductile materials
