Gatan Microscopy Suite Software

Drive your digital cameras and surrounding components to support key applications including tomography, in-situ, spectrum and diffraction imaging, plus more.

Advantages Research Spotlight Media Library Publications Resources Back to top
Advantages:

Gatan Microscopy Suite® (GMS) is the industry standard software for (scanning) transmission electron microscope experimental control and analysis. GMS 3 is completely revamped and uses a new, much simplified user interface. GMS 3 enables novice users to easily perform basic research applications, while it continues to provide the deep access and control highly experienced microscopists are used to and demand.

Selected benefits of GMS software:

  • Technique-centric workflow: Guides you through experimental setup, execution and analysis
  • Tabbed workspaces and data layout manager: Provide a user-friendly way to organize and manage data
  • Dedicated view for live data: Clearly separates newly acquired data from prior experiments
  • EELS made easy: New, powerful model-based EELS analysis routines provide higher quality results, easier
    • Complemented by step-by-step instructions available on EELS.info, an educational site that is dedicated to supporting the EELS community
  • DigitalMicrograph® scripting: Uncompromised full control for expert users

Publications

Science
2015

Mecklenburg, M.; Hubbard, W. H.; White, E. R.; Dhall, R.; Cronin, S. B.; Aloni, S.; Regan, B. C.

Advanced Catalytic Materials: Current Status and Future Progress
2019

Mayoral, Á.; del Angel, P.; Ramos, M.

Resources:



Free GMS software

Download Software

Modules

Digital imaging software
Latitude® S software  Sets a new standard for the efficient, high-throughput collection of low-dose, single-particle, cryo-EM datasets from Gatan’s cameras.
In-Situ Explorer software Full in-situ control and data handling within Gatan Microscopy Suite software
In-Situ Video software Synchronizes your images with data from in-situ devices
TEM AutoTune software Automates adjustment of focus, astigmatism, and misalignment
DigitalMontage® software Stage and optics control so you can seamlessly stitch images together
HREM AutoTune software Facilitate your HREM assays by automatically adjusting the critical imaging parameters of a TEM microscope focus, stigmation, and beam tilt
DIFPACK module Diffraction analysis package to automate the selection area of your electron diffraction (SAED) patterns and high-resolution lattice images of crystalline samples
HoloWorks module Computes live phase images from live holograms, allows for live phase unwrapping and provides image stack acquisition and stack processing (including sample and interference-fringe drift correction) enabling high-resolution phase images at the 2pi/1000 level
EELS, EFTEM & STEM software
STEM Diffraction imaging module Allows you to acquire diffraction patterns pixel-by-pixel as a 4D data set
Advanced AutoFilter suite Automates your multi-element EELS and EFTEM data acquisition experiments



Datasheet

Gatan Microscopy Suite software

Applications

Fast STEM spectrum imaging using simultaneous EELS and EDS in Gatan Microscopy Suite® software

Posters

Fast STEM EELS spectrum imaging analysis of Pd-Au based catalysts
The high efficiency of the latest generation EELS spectrometers allow highly detailed EELS spectra from heavy elements to be acquired in a matter of milliseconds resulting in composition maps with outstanding information content.

A quantitative investigation of biological materials using EELS
EELS has proved to be a valuable tool to obtain compositional information from biological samples. In addition to the composition, EELS also gives insight into the chemistry unveiling the nature of the chemical bonds and different oxidation states.

High-speed composition analysis of high-z metal alloys in DualEELS™ mode
Demonstrating that high-speed atomic EELS composition maps with high contrast and high signal-to-noise ratio can be acquired routinely from high-energy edges.

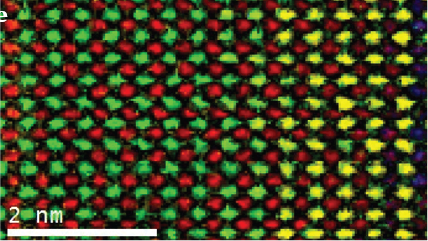

Fast atomic level EELS mapping analysis using high-energy edges in DualEELS mode
Demonstrating that atomic EELS mapping using high-energy edges is very effective. The high signal-to-background ratio of high-energy edges leads to simplified data extraction.

Atomic resolved EELS analysis across interfaces in III-V MOSFET high-k dielectric gate stacks
Demonstrating that EELS SI can reveal the elemental distribution at the gate of high-k MOSFET devices at the atomic column level.

Fast STEM spectrum imaging using simultaneous EELS and EDS in Gatan Microscopy Suite software

Compatibility

Computer recommendations

Tools

EELS App     Scripts     EELS.info
